Evolution

This chapter describes several ways to work with time evolution of quantum systems on lattices. It features Evolution — a powerful struct that represents the time evolution of a quantum system according to the Schrödinger equation, and TimeSequence, which is used to store and process time-dependent data.

Basics

The Evolution struct is used to represent the time evolution of a quantum system. It contains the Hamiltonian and the initial state (or states) of the system. To evaluate the time evolution, you can write this:

using LatticeModels, Plots
lat = Chain(200)

# Define the initial state: a Gaussian wavepacket
x = coordvalue(lat, :x)
psi0 = ketstate(@. exp(-0.02 * (x - 50) ^ 2 - im * 0.3x))

# Define the Hamiltonian
H = tightbinding_hamiltonian(lat)

# Create the plot
plot(title="Gaussian wavepacket evolution", xlabel="x", yticks=:none)
# Empty plots for the legend
plot!([NaN], c = :blue, label="Re")
plot!([NaN], c = :red, label="Im")

ev = Evolution(H, psi0)
for moment in ev(0:5:50)
    psi, Ht, t = moment # Unpack to get the state, Hamiltonian and time
    plot!(real.(psi.data) .+ t / 3, c=:blue, lab="")
    plot!(imag.(psi.data) .+ t / 3, c=:red, lab="")
end
plot!()

We got a pretty plot of a Gaussian wavepacket moving to the right. Let us discuss what happened here in-depth.

We set the Hamiltonian to be a constant operator. Since we perform the evolution in even time steps, and the Hamiltonian is not time-dependent, we can precompute the exponential of the Hamiltonian $\hat{U} = e^{-i H t}$ and use it in the evolution. This is done automatically here.

The Evolution struct is not an iterator. Instead, it is a callable object that returns an iterator. This is done to allow for more flexibility, as you can see below.

The Evolution struct always yields stateful iterators. This means that the psi in the loop is actually the same object, and it is updated on each iteration. This is done to reduce memory allocations and improve performance. Do not edit the states in the loop, as it will affect the results.

This allows continuing the evolution from the last state. Let's stick to the previous example and add some more iterations:

for moment in ev(50:5:100)
    t = moment.t        # Get the time
    psi = moment.state  # Get the state
    # moment.H is the Hamiltonian, but it is not used here
    plot!(real.(psi.data) .+ t / 3, c=:blue, lab="")
    plot!(imag.(psi.data) .+ t / 3, c=:red, lab="")
end
plot!()

for moment in Evolution(H, psi0, timedomain=0:5:50)
    # ...
end

ev = Evolution(H, psi0)
for moment in ev(0:5:50)
    # ...
end

Note that we used a different notation to access the state and the time. You can use any of these two, whichever you find more convenient in your situation:

• Fields: psi = moment.state; Ht = moment.H; t = moment.t
• Unpacking: psi, Ht, t = moment

Multiple initial states

The Evolution struct can also accept multiple initial states. Let's create two Gaussian wavepackets and evolve them:

# Define the initial states: two Gaussian wavepackets
psi0_1 = ketstate(@. exp(-0.02 * (x - 50) ^ 2 - im * 0.3x))
psi0_2 = ketstate(@. exp(-0.02 * (x - 150) ^ 2 + im * 0.3x))

p = plot(title="Two Gaussian wavepackets evolution", xlabel="x", yticks=:none)

ev = Evolution(H, psi0_1, psi0_2)     # Pass the initial states as keyword arguments
for moment in ev(0:5:50)
    psi1 = moment[1]
    psi2 = moment[2]
    t = moment.t
    plot!(abs2.(psi1.data) .+ t / 3, c=:black, lab="")
    plot!(abs2.(psi2.data) .+ t / 3, c=:green, lab="")
end
plot!()

Note that accessing moment.state will throw an error here, because there is more than one state. Instead, you can access all them as a tuple with moment.states or each one separately with moment[1], moment[2], etc. Also you can still unpack the moment as psi1, psi2, Ht, t = moment, which will do the very same thing.

The Evolution struct also allows assigning aliases to the states. You can do this by passing the initial states as keyword arguments. This code will produce the same result as in the previous example:

p = plot(title="Two Gaussian wavepackets evolution", xlabel="x", yticks=:none)

ev = Evolution(H, psi1=psi0_1, psi2=psi0_2)
for moment in ev(0:5:50)
    t = moment.t
    plot!(abs2.(moment.psi1.data) .+ t / 3, c=:black, lab="")
    plot!(abs2.(moment.psi2.data) .+ t / 3, c=:green, lab="")
end
plot!()

moment.states will be a named tuple with the states in this case. This way you can access the states as moment.psi1, moment.psi2, etc. You can still use indices moment[1], moment[2] or unpack the moment as psi1, psi2, Ht, t = moment. The choice is yours.

Time-dependent Hamiltonian

If the Hamiltonian is time-dependent, you can pass a function that returns the Hamiltonian at the given time. This function should accept a single argument — the time. An example of a time-dependent Hamiltonian is the one with a magnetic field that changes in time from the Examples section:

using LatticeModels, Plots
l = TriangularLattice(Circle(10), !Circle(5))
removedangling!(l)
h(B) = tightbinding_hamiltonian(l, field=PointFlux(B))
diag = diagonalize(h(0))

P_0 = densitymatrix(diag, mu = 0)
τ = 10
ht(t) = h(0.1 * min(t, τ) / τ)
ev = Evolution(ht, P_0)

anim = @animate for moment in ev(0:0.1:2τ)
    ρ, Ht, t = moment
    curr = DensityCurrents(Ht, ρ)
    plot(curr, title="t = $t", clims=(0, 0.005), size=(1000, 700))
end
gif(anim, "currents.gif")

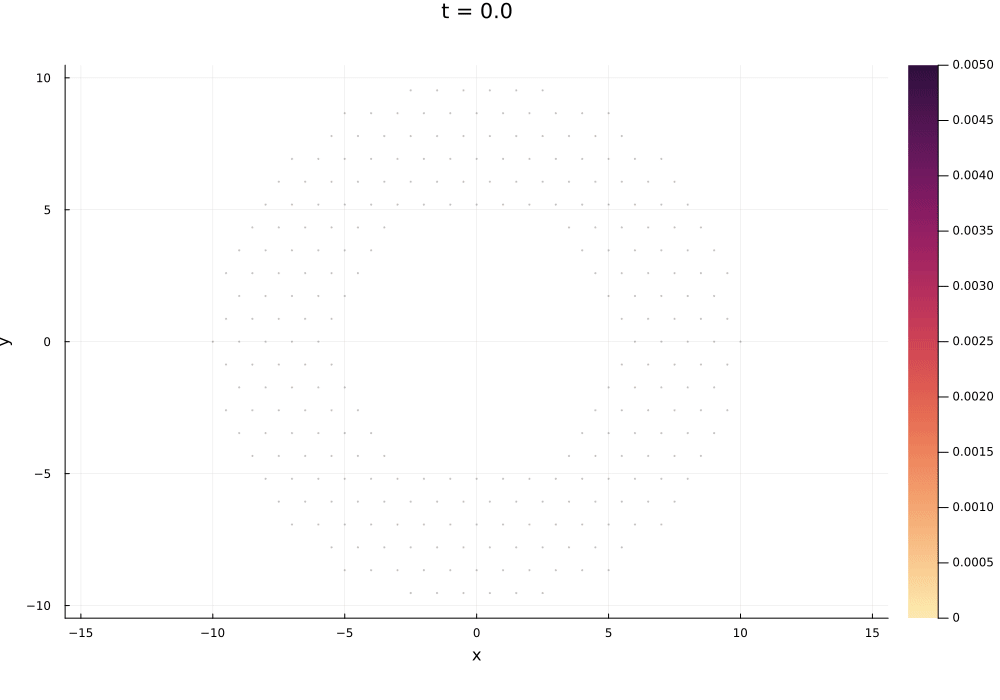

Here we applied magnetic field that changes in time. The flux is increased linearly from 0 to 0.1 in 10 time units, and then stays constant. The animation shows the density currents in the lattice at each time step.

To make the Hamiltonian time-dependent in the previous example, we defined a function ht(t) = h(0.1 * min(t, τ) / τ). This function returns the Hamiltonian with the flux 0.1 * min(t, τ) / τ at the given time t. The Evolution struct then uses this function to calculate the Hamiltonian at each time step.

The exponent for the time-dependent Hamiltonian is cached for each time step. This means that on the second half of the evolution interval, the exponent is calculated only once, and then reused for each time step. This improves performance. To improve it even more, you can pre-calculate the static Hamiltonian:

const H1 = h(0.1)   # Make it constant to enforce type stability
ht(t) = t > τ ? H1 : h(0.1 * t / τ)

Solvers

The Evolution struct can use several solvers to calculate the time evolution. You can set the solver to use explicitly this way:

ev = Evolution(CachedExp(threshold=1e-12, nztol=1e-15), H, psi0)

The CachedExp solver is the default option, and it works in a very simple way: at each time step it calculates the exponent of the Hamiltonian $\hat{U} = e^{-i H \Delta t}$ and applies it to the state. It also caches the exponent to avoid recalculating it if the Hamiltonian and the timestep are the same.

The exponent is calculated using a custom-implemented scaling and squaring algorithm. Contrary to the exp function from the LinearAlgebra package, it works with sparse matrices and GPU arrays also, while performance on dense matrices is comparable. However, some precision loss is possible, especially for large time steps, so you can adjust the tolerance for your case with these parameters:

• threshold — the threshold for the error in the exponent calculation. Limits the number of iterations in the Taylor series expansion. The default value is 1e-10.
• nztol — the tolerance for the zero elements in the Hamiltonian. Works only for sparse matrices — the elements with the absolute value less than nztol are considered zero. The default value is 1e-14.

The CachedExp solver is universal and works well in most cases. However, it is not the most efficient one. In some specific cases you might want to use a more specialized solver. For example, the KrylovKitExp solver can be faster if the Hamiltonian is large, sparse and dependent on time. It uses the exponentiate function from the KrylovKit package to calculate the exponent.

Let's run some performance tests:

using LatticeModels
l = SquareLattice(40, 40)
h(B) = tightbinding_hamiltonian(l, field=LandauGauge(B))

# The initial state is the ground state of the Hamiltonian with B = 0
psi = groundstate(h(0))
τ = 10
ht(t) = h(0.1 * min(t, τ) / τ)
ts = 0:0.1:2τ
site = l[!, x = 20, y = 20]

println("CachedExp:")
# We can evaluate the density at x = 20, y = 20 in a one-liner
@time dens1 = [localdensity(moment.state)[site] for moment in
    Evolution(CachedExp(), ht, psi, timedomain=ts, showprogress=false)]
@time dens1 = [localdensity(moment.state)[site] for moment in
    Evolution(CachedExp(), ht, psi, timedomain=ts, showprogress=false)]
@time dens1 = [localdensity(moment.state)[site] for moment in
    Evolution(CachedExp(), ht, psi, timedomain=ts, showprogress=false)]

println("\nKrylovKitExp:")
@time dens2 = [localdensity(moment.state)[site] for moment in
    Evolution(KrylovKitExp(), ht, psi, timedomain=ts, showprogress=false)]
@time dens2 = [localdensity(moment.state)[site] for moment in
    Evolution(KrylovKitExp(), ht, psi, timedomain=ts, showprogress=false)]
@time dens2 = [localdensity(moment.state)[site] for moment in
    Evolution(KrylovKitExp(), ht, psi, timedomain=ts, showprogress=false)]

CachedExp:
  3.684119 seconds (190.68 k allocations: 10.714 GiB, 7.98% gc time, 4.54% compilation time)
  3.594262 seconds (79.13 k allocations: 10.707 GiB, 8.23% gc time, 1.42% compilation time)
  3.553230 seconds (79.13 k allocations: 10.707 GiB, 8.04% gc time, 1.49% compilation time)

KrylovKitExp:
  3.413352 seconds (4.09 M allocations: 517.461 MiB, 2.07% gc time, 85.48% compilation time)
  0.507385 seconds (81.78 k allocations: 258.259 MiB, 6.66% gc time, 14.08% compilation time)
  0.522172 seconds (81.78 k allocations: 258.240 MiB, 2.38% gc time, 10.10% compilation time)

The first attempt took some time because of the precompilation required, but overall the KrylovKitExp solver turned out to be faster in this case. Let's plot the results to make sure they are the same:

using Plots
plot(ts, dens1, label="CachedExp", xlabel="t", ylabel="ρ(x=20, y=20)",
    ylims=(0, NaN), size=(800, 400))
plot!(ts, dens2, label="KrylovKitExp")

A significant drawback of KrylovKitExp solver is that it works only with wavefunctions — it does not support density matrices.

TimeSequence

The TimeSequence struct is used to store and manipulate time-dependent data. It is a dictionary-like object that maps time points to values. The values can be any type, including arrays, matrices, and even lattice-specific types like LatticeValue.

Let's calculate the evolution of a ground state of a tight-binding model after a magnetic field is adiaiabatically turned on. We will store the local density at each time step and use it to plot the local density depending on time, as well as its time derivative and integral over time:

using LatticeModels, Plots
l = SquareLattice(20, 20)
h(B) = tightbinding_hamiltonian(l, field=LandauGauge(B))

# The initial state is the ground state of the Hamiltonian with B = 0
psi = groundstate(h(0))
τ = 10
ht(t) = h(0.1 * min(t, τ) / τ)
densities = TimeSequence{LatticeValue}()

for moment in Evolution(ht, psi, timedomain=0:0.1:2τ)
    densities[moment.t] = localdensity(moment.state)
end

plot(densities[!, x = 10, y = 10], label="ρ(t) (bulk)")
plot!(densities[!, x = 1, y = 10], label="ρ(t) (edge)")

densities = TimeSequence(Evolution(ht, psi), 0:0.1:2τ) do moment
    localdensity(moment.state)
end

Note that we can index a TimeSequence of LatticeValues the same way as a LatticeValue itself, which will produce another TimeSequence with the same time domain. This is because TimeSequence forwards almost all the indexing operations to the values it stores.

This type also supports time indexing and slicing. You can combine these types of indexing by using the t keyword for the time axis — all other arguments will be treated as spatial coordinates. Let's plot the local density at the center of the lattice and the local density at the edge of the lattice at the same time point:

p = plot(layout=2, size=(1000, 500))
plot!(p[1], densities[0.5])
plot!(p[2], densities[!, x=10, y=10, t=0.5 .. 3.5], label="ρ(t) (bulk)")
plot!(p[2], densities[!, x=1, y=10, t=5 .. 10], label="ρ(t) (edge)")

Another very useful feature of the TimeSequence is that it can be integrated and differentiated over time using the integrate and differentiate functions. Let's plot the time derivative and integral of the local density in the bulk of the lattice:

densities_bulk = densities[!, x = 10, y = 10]
plot(densities_bulk, label="ρ(t) (bulk)")
plot!(differentiate(densities_bulk), label="dρ(t)/dt (bulk)")
plot!(integrate(densities_bulk), label="∫ρ(t)dt (bulk)")
