Examples

Lowest states in a tight-binding model

The tight-binding model Hamiltonian is defined by this formula (the sum is performed over adjacent sites):

\[\hat{H} = \sum_{<i, j>}^\text{sites} \left( c^\dagger_i c_j + h. c. \right)\]

Here we take a square lattice and build a Hamiltonian for it. Then we find its eigenstates and plot their local density on heatmaps.

using LatticeModels
using Plots
# Generate a 40x40 square lattice
l = SquareLattice(40, 40)
# Define the tight-binding model Hamiltonian
H = tightbinding_hamiltonian(l)

# Calculate eigenvalues and eigenvectors
diag = diagonalize(H)

n = 5
clims = (0, 0.0045)

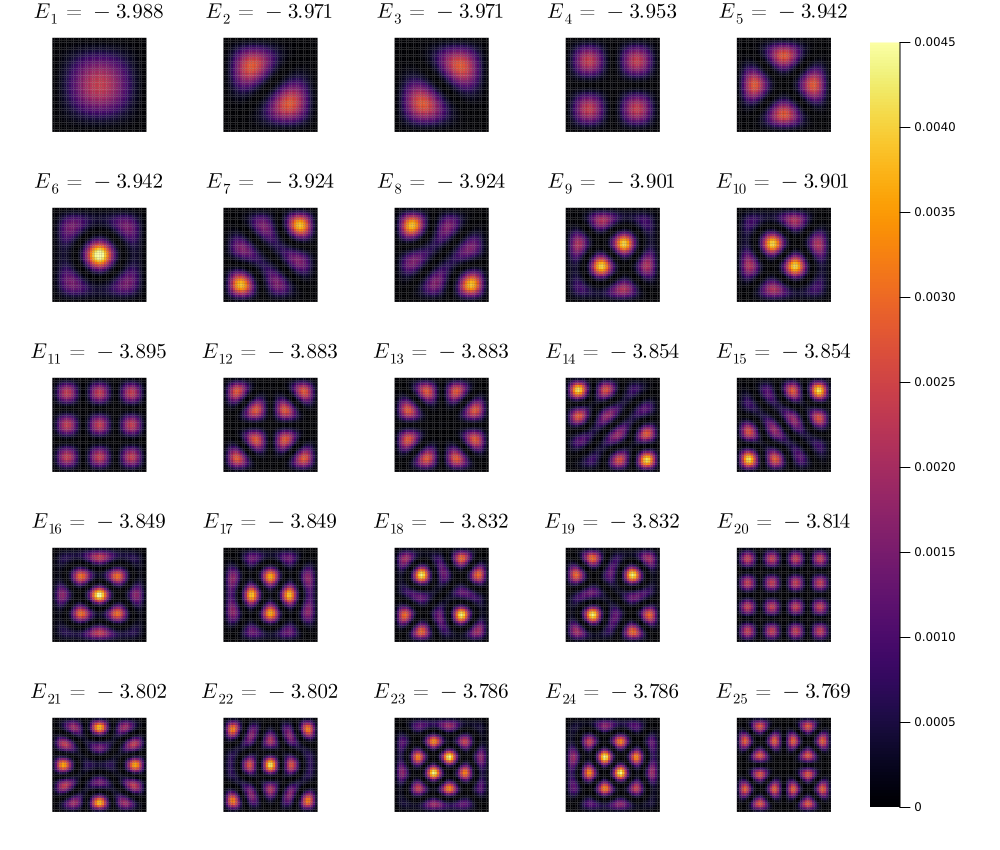

p = plot(layout = @layout[grid(n, n) a{0.1w}], size=(1000, 850))
for i in 1:n^2
    E_rounded = round(diag.values[i], sigdigits=4)
    plot!(p[i], localdensity(diag[i]), title="\$E_{$i} = $E_rounded\$", st=:shape,
        clims=clims, c=:inferno, cbar=:none, lw=0, framestyle=:none, xlab="", ylab="")
end

# The following lines are kinda hacky; they draw one colorbar for all heatmaps
plot!(p[n^2+1], framestyle=:none)
scatter!([NaN], zcolor=[NaN], clims=clims, leg=:none, cbar=:right, subplot=n^2+2,
    background_subplot=:transparent, framestyle=:none, inset=bbox(0.0, 0.05, 0.95, 0.9))
savefig("local_density.png")

Related sections: Lattices, Systems and Hamiltonians, Diagonalizing.

Currents on a ring-shaped sample

In this example we create a ring-shaped sample of a triangular lattice. Then we adiabatically turn on magnetic field through the hole and see currents emerge.

using LatticeModels
using Plots

l = TriangularLattice(Circle(10), !Circle(5))
removedangling!(l)
h(B) = tightbinding_hamiltonian(l, field=PointFlux(B))
diag = diagonalize(h(0))

# Find density matrix for filled bands (e. g. energy < 0)
P_0 = densitymatrix(diag, mu = 0)
# Perform unitary evolution
τ = 10
ev = Evolution(t -> h(0.1 * min(t, τ) / τ), P_0)

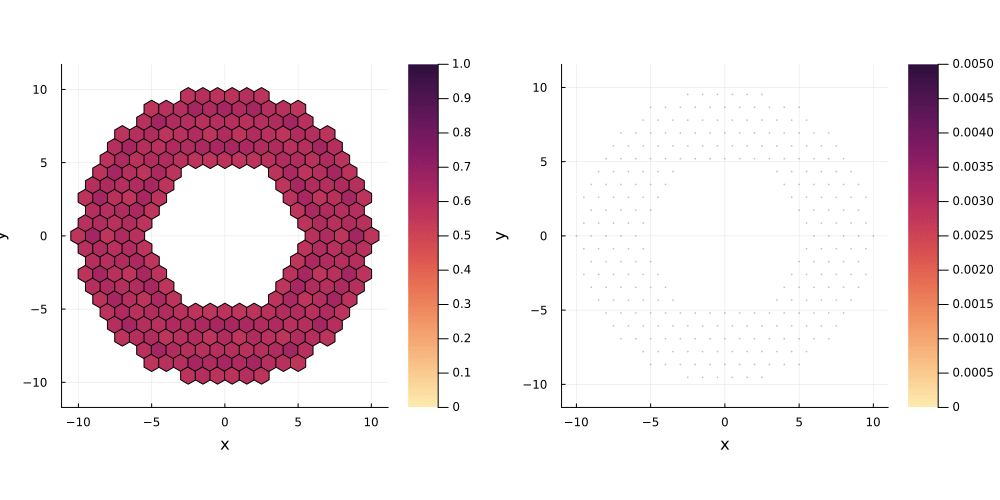

anim = @animate for state in ev(0:0.1:2τ)
    P, H, t = state
    # Find the density and plot it
    p = plot(layout=2, size=(1000, 500))
    plot!(p[1], localdensity(P), clims=(0, 1), st=:shape)

    # Show currents on the plot
    plot!(p[2], DensityCurrents(H, P), clims=(0, 0.005), lw=1, arrowheadsize=0.3)
    plot!(plottitle="t = $t")
end

gif(anim, "adiabatic_flux.gif")

Related sections: Currents, Evolution.

Time sequences

In this example we will see how to use TimeSequence to store and manipulate time-dependent data.

We will calculate the evolution of a ground state of a tight-binding model after a magnetic field is turned on. We will store the local density at each time step and use it to plot the local density depending on time, as well as its time derivative and integral over time.

using LatticeModels, Plots

l = SquareLattice(20, 20)
H = tightbinding_hamiltonian(l)
psi_0 = groundstate(H)
H1 = tightbinding_hamiltonian(l, field=LandauGauge(0.1))
ev = Evolution(H1, psi_0)

densities = TimeSequence{LatticeValue}()
for (psi, _, t) in ev(0:0.1:10)
    densities[t] = localdensity(psi)
end

site_bulk = l[!, x = 10, y = 10]
site_edge = l[!, x = 10, y = 1]
ds_bulk = densities[site_bulk]
ds_edge = densities[site_edge]
plot(ds_bulk, label="ρ(t) (bulk)")
plot!(differentiate(ds_bulk), label="dρ(t)/dt (bulk)")
plot!(ds_edge, label="ρ(t) (edge)")
plot!(integrate(ds_edge), label="∫ρ(t)dt (edge)")

Related sections: Gauge fields, Evolution, TimeSequence.

Hofstadter butterfly

The Hofstadter butterfly is a fractal-like structure that appears when the tight-binding model is subjected to a magnetic field. It is a plot of the energy spectrum as a function of the magnetic flux through the unit cell.

To create the Hofstadter butterfly, we will use the Landau gauge for the magnetic field. Note that we have to set periodic boundary conditions, and to make them compatible with the gauge field, they should be tweaked a little:

\[\psi(x + L_x, y) = \psi(x, y) e^{2\pi i B y L_x}, \psi(x, y + L_y) = \psi(x, y)\]

Let us plot the Hofstadter butterfiles for square, triangular and honeycomb lattices. The magnetic field field will be changed from zero to one $\phi_0$ flux quantum per plaquette.

using LatticeModels, Plots

function get_butterfly(l, lx, ly, plaquette_area)
    xs = Float64[]
    ys = Float64[]
    area = lx * ly
    dflux = 1 / area
    totflux = 1 / plaquette_area
    for B in 0:dflux:totflux
        # magnetic boundary conditions
        f(site) = exp(2pi * im * B * site.y * lx)
        lb = setboundaries(l, [lx, 0] => f, [0, ly] => true)
        H = tightbinding_hamiltonian(lb, field=LandauGauge(B))
        dg = diagonalize(H)
        append!(xs, fill(B, length(dg.values)))
        append!(ys, dg.values)
    end
    return xs, ys
end

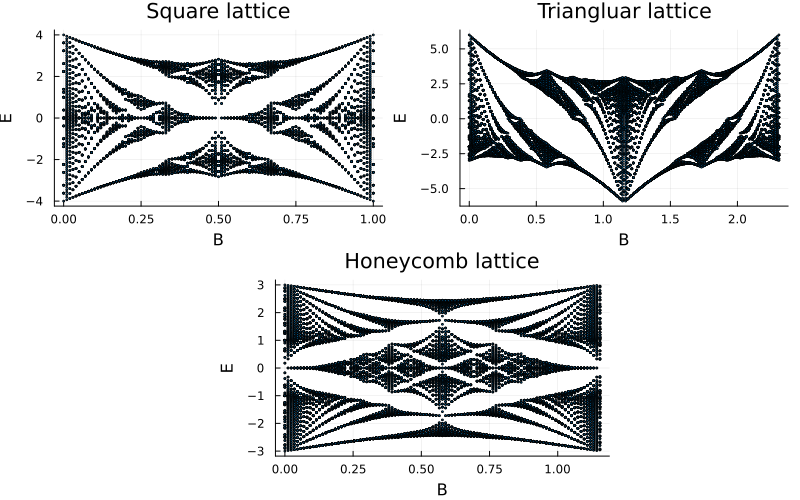

p = plot(layout = @layout[a b; _ c{0.5w} _], size=(800, 500), leg=false,
    xlabel="B", ylabel="E")
scatter!(p[1], title="Square lattice",
    get_butterfly(SquareLattice(10, 10), 10, 10, 1), ms=1)
scatter!(p[2], title="Triangluar lattice",
    get_butterfly(TriangularLattice(10, 10), 10, 5 * sqrt(3), sqrt(3) / 4), ms=1)
scatter!(p[3], title="Honeycomb lattice",
    get_butterfly(HoneycombLattice(10, 10), 10, 5 * sqrt(3), sqrt(3) / 2), ms=1)
savefig("hofstadter_butterfly.png")

Related sections: Lattices, Boundary conditions, Gauge fields.

LDOS animation

Local density can be a bit ambiguous for degenerate eigenstates. That's where the LDOS (e. g. the Local Density of States) will be helpful.

The formula for the LDOS is the following:

\[\text{LDOS}_\alpha(E) = \frac{1}{\pi} \text{Im} G_{\alpha\alpha}(E - i\delta)\]

where $G$ is the Green's function and $\delta$ is the broadening.

Let's create an animation presenting the DOS and LDOS for a square lattice with a hole indside. We will use the QWZ model hamiltonian, because it has a two-zone band structure, which will make the results more interesting. See qwz for more information about the QWZ model.

using LatticeModels
using Plots
l = SquareLattice(20, 20)
l_center = l[j1 = 8 .. 13, j2 = 8 .. 13]
setdiff!(l, l_center)   # remove the center
H = qwz(l)

dg = diagonalize(H)
δ = 0.1
Es = -4:0.1:4
Es_d = -4:0.01:4
G = greenfunction(dg)

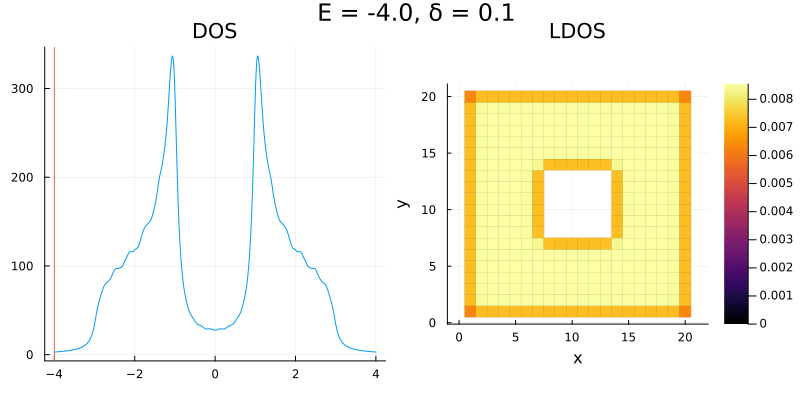

anim = @animate for E in Es
    p = plot(layout=2, size=(800, 400))
    plot!(p[1], Es_d, dos(G, broaden=δ), lab="", title="DOS")
    vline!(p[1], [E], lab="")
    plot!(p[2], ldos(G, E, broaden=δ), st=:shape,
        c=:inferno, clims=(0, NaN), title="LDOS", lw=0)
    plot!(p, plot_title="E = $E, δ = $δ")
end

gif(anim, "ldos_animation.gif", fps=10)

Related sections: Green's function, Density of states.
